U bolts are among the most widely used fastening components in construction, automotive, marine, plumbing, agriculture, telecommunications, and industrial engineering. Their simple yet highly effective design allows them to securely clamp pipes, tubes, poles, cables, and structural components to a supporting surface. Despite their straightforward appearance, choosing the correct U bolt requires understanding factors such as material, coating, thread type, load requirements, dimensions, and environmental conditions.

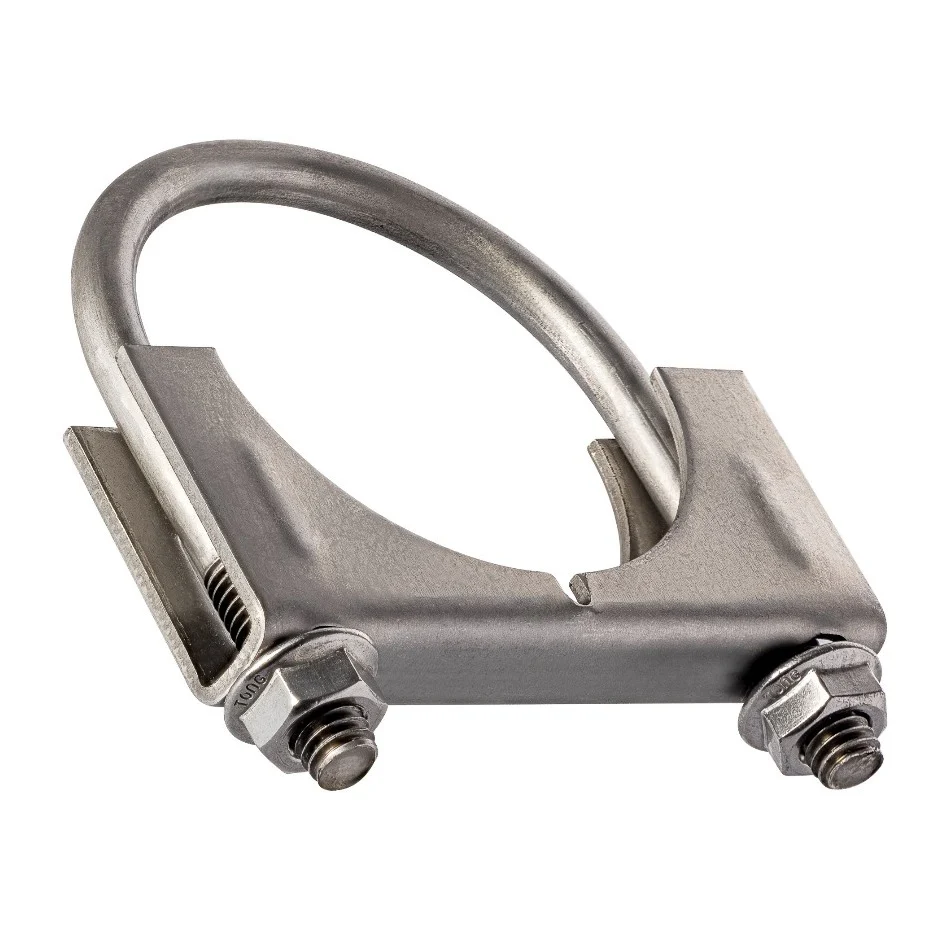

Whether securing an exhaust system beneath a vehicle, mounting a pipe in an industrial facility, fastening a leaf spring on a truck, or supporting a solar installation,’ U bolts‘ play a critical role in maintaining structural stability and long-term reliability. Engineers and contractors rely on properly selected U bolts because these fasteners distribute clamping force evenly while resisting vibration, movement, and mechanical stress.
As industries continue to demand stronger, corrosion-resistant, and longer-lasting fastening solutions, manufacturers have expanded the variety of U bolt materials, finishes, and custom configurations available. Understanding how these fasteners work helps buyers select products that improve safety, reduce maintenance costs, and extend equipment life. This guide explains everything you need to know about U bolts, including their design, applications, sizing, materials, installation, maintenance, and best practices for choosing the right one.
What Are U Bolts and How Do They Work?

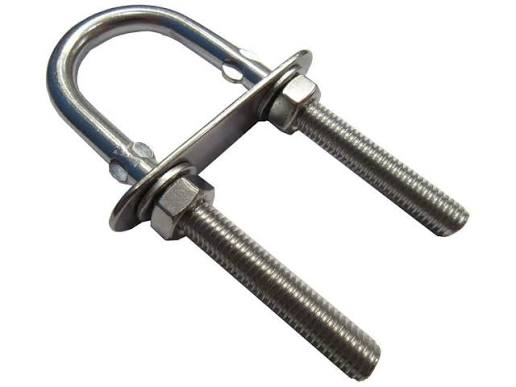

A U bolt is a threaded fastener bent into the shape of the letter “U,” with machine threads cut or rolled onto both straight ends. During installation, the curved portion wraps around a pipe, tube, cable, pole, or round structural member, while the threaded legs pass through a mounting plate or bracket. Nuts and washers are tightened onto both threaded ends, creating uniform clamping pressure that securely holds the object in place.
The effectiveness of a U bolt comes from its ability to distribute force evenly around cylindrical objects without requiring complex fastening systems. Unlike standard bolts that join flat surfaces, U bolts are specifically engineered for securing round or curved components. Their design minimizes movement while providing excellent resistance against vibration, dynamic loads, and repeated mechanical stress.
Modern manufacturing techniques ensure that high-quality U bolts maintain precise dimensions, consistent thread quality, and excellent tensile strength. Many industries also require U bolts that meet recognized engineering and manufacturing standards to ensure predictable performance under demanding operating conditions.
Common Types of U Bolts and Their Design Variations
Although all U bolts share the same general shape, manufacturers produce several variations designed for different applications. Round U bolts are the most common and are used to secure circular pipes, tubing, exhaust systems, and poles. Square U bolts feature a flat bend and are intended for square tubing, timber framing, trailer components, and structural steel where flat contact surfaces provide improved stability.
Semi-round U bolts combine characteristics of both round and square designs, making them suitable for specialized industrial equipment and heavy-duty mounting applications. Long-leg U bolts provide additional thread engagement for thicker mounting assemblies, while custom U bolts can be manufactured to unique dimensions for specialized engineering projects.
Thread configuration also varies according to application requirements. Fully threaded U bolts offer greater adjustment flexibility, whereas partially threaded designs provide improved strength in high-load applications. Many industries also specify custom bend radii, thread lengths, and leg spacing to accommodate unique equipment or installation requirements.
Materials Used in U Bolt Manufacturing
Material selection significantly influences the strength, durability, and corrosion resistance of a U bolt. Carbon steel remains one of the most widely used materials because it offers excellent mechanical strength and cost-effectiveness for general construction, agricultural equipment, machinery, and structural applications where exposure to harsh environmental conditions is limited.
Stainless steel U bolts are preferred for marine, food processing, pharmaceutical, coastal, and outdoor installations where corrosion resistance is essential. Grades such as 304 stainless steel provide excellent resistance to moisture and atmospheric corrosion, while 316 stainless steel delivers superior protection in saltwater and chemically aggressive environments. These stainless steel fasteners require minimal maintenance while maintaining their appearance and structural integrity over many years.
For specialized industrial applications, alloy steel U bolts provide exceptional tensile strength and fatigue resistance. Protective finishes such as hot-dip galvanizing, zinc plating, mechanical galvanizing, powder coating, and specialized corrosion-resistant coatings further extend service life by protecting the underlying metal from oxidation, moisture, chemicals, and environmental wear.
Major Applications of U Bolts Across Industries
The automotive industry depends heavily on U bolts for suspension systems, axle assemblies, leaf spring mounting, trailer components, and exhaust system installation. Heavy-duty trucks, commercial vehicles, agricultural machinery, and off-road equipment often utilize specially engineered U bolts capable of withstanding continuous vibration, shock loading, and changing road conditions.
Construction and infrastructure projects also rely extensively on U bolts for pipe support systems, electrical conduit installation, HVAC equipment, structural bracing, communication towers, fencing, and utility infrastructure. Their versatility allows contractors to create secure mounting systems while simplifying installation and future maintenance.
Marine, energy, mining, telecommunications, and renewable energy industries use U bolts to secure equipment exposed to challenging environments. Offshore platforms, solar panel mounting systems, wind turbine infrastructure, cable management systems, and industrial processing facilities require corrosion-resistant U bolts capable of maintaining reliable performance under continuous environmental stress.
Understanding U Bolt Sizes, Dimensions, and Specifications
Selecting the proper U bolt size involves more than matching the pipe diameter. Several measurements determine compatibility, including inside width, inside height, leg length, thread length, rod diameter, thread pitch, and bend radius. Accurate measurements ensure proper fit while preventing excessive stress concentration or inadequate clamping force.
The rod diameter largely determines the load-carrying capacity of the U bolt. Larger diameters generally provide greater tensile strength and increased resistance to deformation under heavy loads. Engineers must also consider dynamic loading, thermal expansion, vibration, and potential fatigue when selecting fastener dimensions for long-term performance.
Manufacturers often produce U bolts according to recognized dimensional standards to promote consistency across industries. Standardized sizing simplifies replacement, maintenance, and compatibility with brackets, mounting plates, washers, and nuts. Custom fabrication remains available for specialized equipment requiring non-standard dimensions or unique installation requirements.
Proper Installation Techniques for Long-Term Performance
Correct installation is essential for maximizing the safety and durability of any U bolt assembly. Before installation, technicians should inspect the fastener for manufacturing defects, damaged threads, coating imperfections, or signs of corrosion. The mounting surfaces should also be clean, properly aligned, and free from debris that could interfere with uniform clamping pressure.
During tightening, equal torque should be applied to both nuts so that the load is distributed evenly across the entire U bolt. Uneven tightening can introduce bending stresses that reduce fatigue life and increase the likelihood of premature failure. Proper washers help distribute compressive force while protecting mounting surfaces from localized damage.
Torque specifications should always correspond to the manufacturer’s recommendations and the material grade of the fastener. Excessive tightening can permanently deform the U bolt or damage the supported component, while insufficient torque may allow movement, vibration, loosening, and eventual structural failure. Periodic reinspection is especially important in applications exposed to continuous vibration or changing operating conditions.
Corrosion Resistance, Maintenance, and Service Life
Environmental exposure significantly affects the lifespan of U bolts. Moisture, road salt, industrial chemicals, ultraviolet radiation, marine environments, and fluctuating temperatures all contribute to corrosion and material degradation over time. Selecting an appropriate material and protective finish greatly extends service life while reducing maintenance costs.
Routine inspections allow maintenance teams to identify early signs of corrosion, cracked coatings, thread wear, deformation, fatigue, or loosening before more serious failures occur. Preventive maintenance programs often include torque verification, cleaning, lubrication of exposed threads where appropriate, and replacement of damaged hardware before structural integrity is compromised.
In highly corrosive environments, stainless steel or hot-dip galvanized U bolts generally provide better long-term value than untreated carbon steel despite their higher initial cost. The reduced frequency of replacement, lower maintenance requirements, and improved operational reliability often justify the additional investment throughout the equipment’s service life.
Choosing the Right U Bolt for Your Project
Selecting the correct U bolt begins with understanding the operating environment and the mechanical demands of the application. Engineers and buyers should evaluate factors including load capacity, pipe diameter, vibration levels, corrosion exposure, operating temperature, mounting configuration, and expected service life before choosing a fastener.
Material compatibility is equally important. Using incompatible metals in certain environments may contribute to galvanic corrosion, particularly where moisture is present. Matching the U bolt material with surrounding components helps improve durability while reducing the risk of premature deterioration and maintenance issues.
Purchasing high-quality fasteners from reputable manufacturers provides greater confidence in dimensional accuracy, material consistency, mechanical strength, and manufacturing quality. Certified products that comply with recognized engineering standards offer predictable performance and enhanced safety in both commercial and industrial applications where reliability is essential.
The Future of U Bolts in Modern Engineering
Advancements in manufacturing technology continue to improve the performance and reliability of U bolts across numerous industries. Precision forming equipment, advanced thread rolling processes, improved metallurgy, and innovative corrosion-resistant coatings have increased both strength and service life while reducing production variability.
Growing investment in renewable energy, electric vehicles, smart infrastructure, telecommunications, and industrial automation is expanding demand for specialized fastening systems. Engineers increasingly require custom U bolts capable of meeting unique dimensional requirements, higher load capacities, and greater resistance to environmental challenges. Manufacturers continue developing solutions that support these evolving engineering needs while maintaining cost efficiency.
Although U bolts may appear to be simple mechanical components, they perform an essential function in countless applications worldwide. Their ability to securely clamp pipes, structural members, suspension components, and industrial equipment makes them indispensable across modern engineering. By selecting the correct material, dimensions, protective finish, and installation method, businesses and professionals can ensure safe, durable, and dependable performance for many years. As engineering standards continue to evolve, U bolts will remain one of the most reliable and versatile fastening solutions available for construction, transportation, manufacturing, infrastructure, and industrial maintenance.
